Network overview

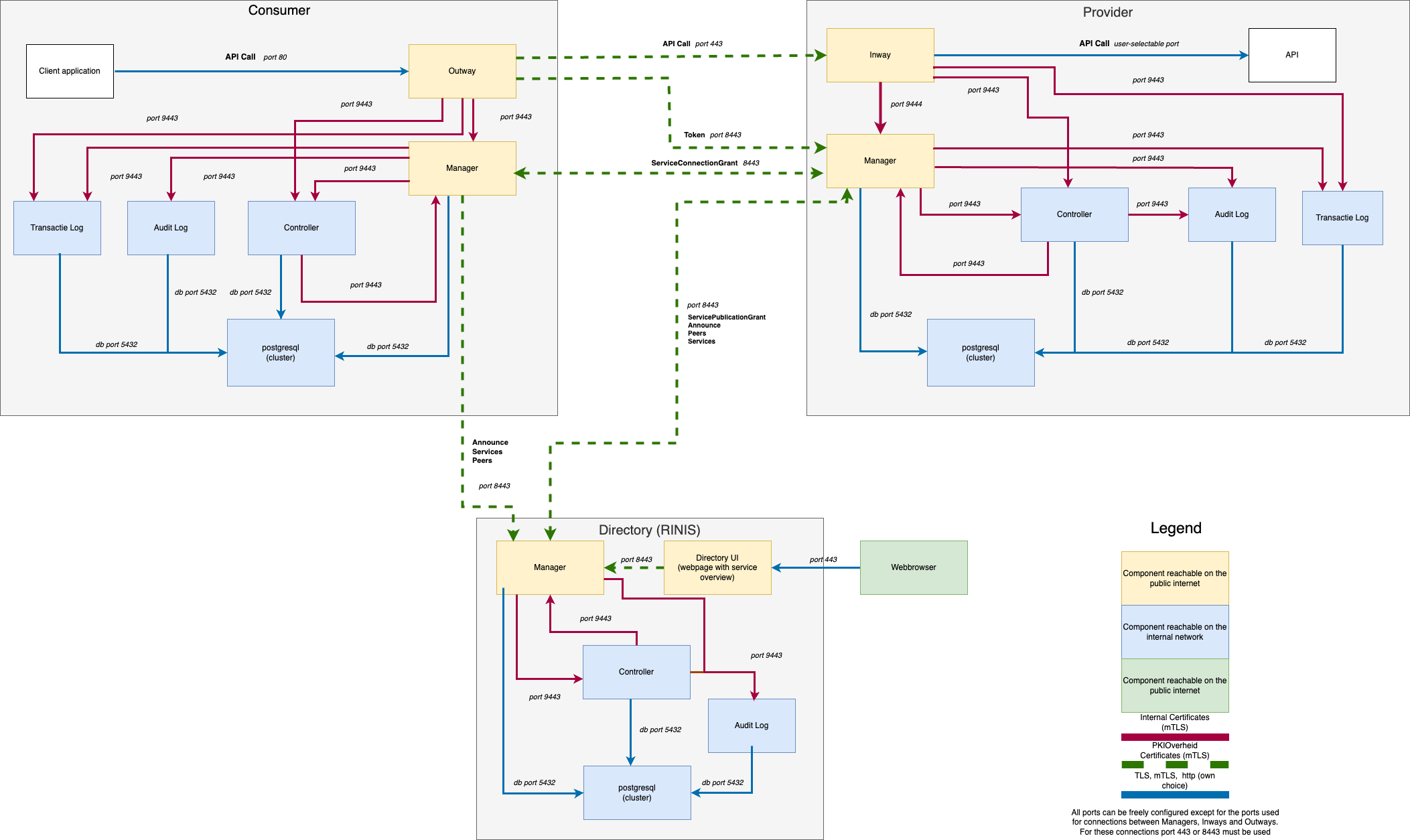

Below you will find an overview of the network connections between the OpenFSC components.

  • Traffic over the public internet will use either port 443 or 8443.
  • Ports of traffic over the internal network can be freely configured. In the overview the default ports are displayed which are used when deploying OpenFSC using the helm charts.

Networkoverview Click for full size image
